Deep Groove Ball Bearings
With more than 50 years of experience in the bearings industry, DEEP CHAND DAYAL CHAND & CO. is India’s preferred Bearing Supplier.
DCDC is one of the reputed and established importers and suppliers of Deep Groove Ball Bearings in Delhi. We provide a special variety of Deep Groove Ball Bearings which might be used for numerous applications. Our products are incredibly long-lasting and are to be had in diverse designs.

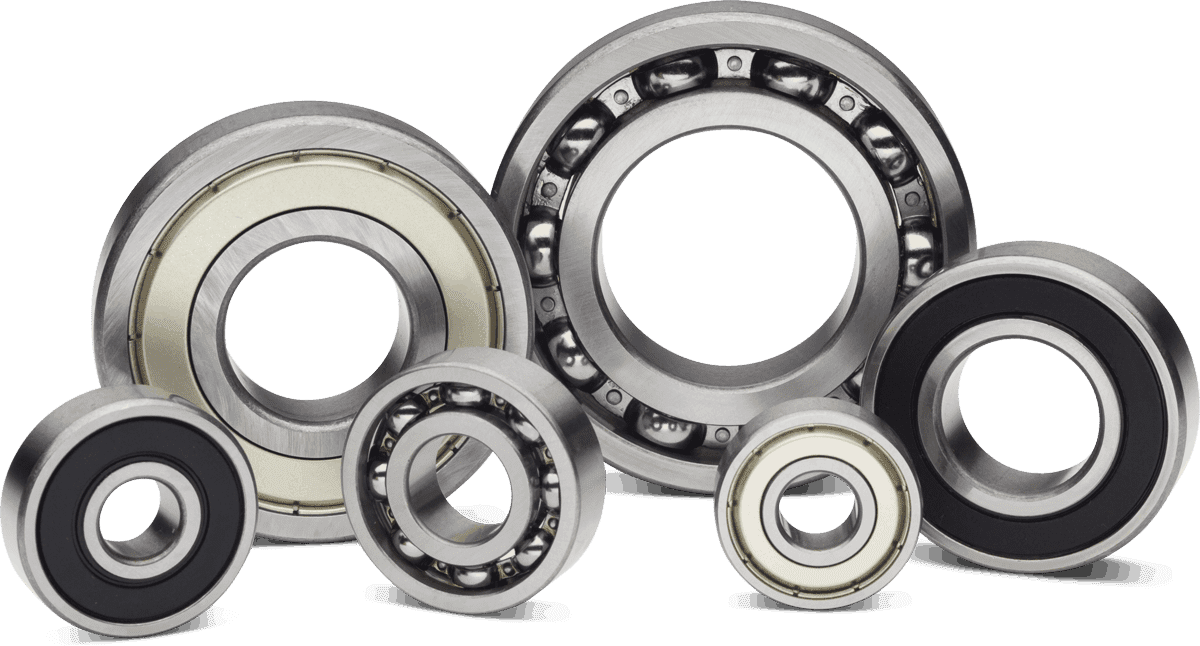

A ball bearing is a form of rolling-detail bearing that makes use of balls to preserve the separation among the bearing races. We provide easy maintenance which results in enhanced demand for products placed in New Delhi, we're dedicated to offering a quality product at high-satisfactory expenses to be had. DCDC BEARING is an eminent supplier and importer of a range of high-quality Deep Groove Ball Bearings and FLT Poland Deep Groove Ball Bearings Delhi.
The deep groove ball bearings from DCDC have deep and continuous raceway grooves. They are various, self-retaining bearings with solid outer rings, inner rings, ball and cage assemblies. These products are made of simple design, easy-to- maintain, durable in operation.

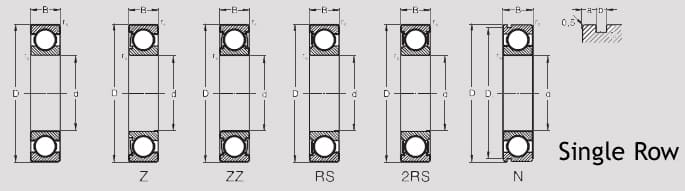

They are available in single and double row designs in both open and sealed variants. Due to the production technology used, the open bearings can still have turned breaks up on the outer ring for shields or seals. On the other end due to their frictional torque they are meant for high speeds.
| SUFFIX | Deep groove ball bearings (single row) | ||||
| Z | metal shield at one side of the bearing | ZZ | metal shield at both sides of the bearing | RS | rubber shield at one side of the bearing |
| 2RS | rubber shield at both sides of the bearing | N | snap ring groove in outer ring | M | machined brass cage |
| TN | polyamid cage | P6 | accuracy to ISO tollerance class 6 | P5 | accuracy to ISO tollerance class 5 |
| C2 | radial clearance less than the normal | C3 | radial clearance greater than the normal | C4 | radial clearance greater than C3 |
| P63 | accuracy to ISO class P6 and clearance C3 | MA | machined brass cage centerd on the outer ring | C0 | standard clearance (not mentioned / marked on bearing) |
| ZN | shield at one side of the bearing and snap ring groove at other side | ||||
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
MASS |
BASIC DESIGNATION |
MODIFICATION | ||||||||||||||
| d | D | B | rs (min) |
D1 | a ~ |
b | ro
max |
dynamic c |
static c0 |
grease* | oil | ~ | Z | ZZ | RS | 2RS | N | ZN | |
| mm | kN | min-1 | |||||||||||||||||
| 4 | 13 | 5 | 0.2 | 0.98 | 0.30 | 48 000 | 56 000 | 0.003 | 624 | • | • | • | |||||||
| 5 | 16 | 5 | 0.3 | 1.10 | 0.38 | 43 000 | 50 000 | 0.005 | 625 | • | • | • | |||||||
| 6 | 19 | 6 | 0.3 | 2.24 | 0.92 | 36 000 | 43 000 | 0.009 | 626 | • | • | • | |||||||
| 7 | 19 22 |
6 7 |
0.3 0.3 |
2.88 3.28 |
1.08 1.35 |
28 000 32 000 |
36 000 38 000 |
0.008 0.010 |
607 627 |
• • |
• • |
• • |
|||||||
| 8 | 22 24 |
7 8 |
0.3 0.3 |
3.30 3.35 |
1.40 1.40 |
32 000 28 000 |
38 000 34 000 |
0.012 0.017 |
608 628 |
• • |
• • |
• • |
|||||||
| 9 | 24 26 |
7 8 |
0.3 0.6 |
3.35 4.58 |
1.45 2.02 |
30 000 26 000 |
36 000 32 000 |
0.014 0.020 |
609 629 |
• • |
• • |
• • |
|||||||
| 10 | 26 30 35 |
8 9 11 |
0.3 0.6 0.6 |
28.17 |
2.06 |
1.35 |
0.4 |
4.58 5.05 7.65 |
2.02 2.28 3.49 |
28 000 24 000 20 000 |
34 000 30 000 26 000 |
0.019 0.032 0.058 |
6000 6200 6300 |
• • • |
• • • |
• • • |
• |
||
| 12 | 28 32 32 37 |
8 10 14 12 |
0.3 0.6 0.6 1.0 |
30.15 34.77 |
2.06 2.06 |
1.35 1.35 |
0.4 0.4 |
5.10 6.90 6.90 9.71 |
2.40 3.20 3.20 4.36 |
26 000 22 000 19 000 19 000 |
32 000 28 000 24 000 24 000 |
0.022 0.037 0.052 0.060 |
6001 6201 62201 6301 |
• • • |
• • • |
• • • |
• • • • |
• |
• |
| 15 | 32 35 35 42 |
9 11 14 13 |
0.3 0.6 0.6 1.0 |
30.15 33.17 39.75 |
2.06 2.06 2.06 |
1.35 1.35 1.35 |
0.4 0.4 0.4 |
5.60 7.74 7.65 11.37 |
2.85 3.83 3.60 5.50 |
22 000 19 000 20 000 17 000 |
28 000 24 000 24 000 20 000 |
0.030 0.045 0.053 0.082 |
6002 6202 62202 6302 |
• • • |
• • • |
• • • • |
• • • • |
• |
• |
| 17 | 35 40 47 62 |
10 12 14 17 |
0.3 0.6 1.0 1.1 |
33.17 38.10 44.60 59.61 |
2.06 2.06 2.46 3.28 |
1.35 1.35 1.35 1.90 |
0.4 0.4 0.4 0.6 |
6.00 9.57 12.80 23.00 |
3.25 4.86 6.68 11.90 |
19 000 17 000 16 000 12 000 |
24 000 20 000 19 000 15 000 |
0.039 0.065 0.115 0.270 |
6003 6203 6303 6403 |
• • • • |
• • • |
• • • |
• • • |
• |
• |
| 20 | 32 37 42 42 47 47 52 72 |
7 9 8 12 14 18 15 19 |
0.3 0.3 0.3 0.6 1.0 1.0 1.1 1.1 |
39.75 44.60 49.73 68.81 |
2.06 2.46 2.46 3.28 |
1.35 1.35 1.35 1.90 |
0.4 0.4 0.4 0.6 |
3.45 6.37 7.93 9.40 12.80 12.70 15.94 30.05 |
2.24 3.65 4.46 5.05 6.68 6.55 8.07 15.00 |
17 000 17 000 18 000 17 000 15 000 10 000 13 000 10 000 |
22 000 22 000 22 000 20 000 18 000 16 000 13 000 |
0.018 0.038 0.050 0.069 0.106 0.131 0.144 0.400 |
61804 61904 16004 6004 6204 62204 6304 6404 |
• • • • • |
• • • |
• • • • |
• • • • |
• • |
• • |
| 25 | 37 42 47 47 52 52 62 80 |
7 9 8 12 15 18 17 21 |
0.3 0.3 0.3 0.6 1.0 1.0 1.1 1.5 |
44.60 49.73 59.61 76.81 |
2.06 2.46 3.28 3.88 |
1.35 1.35 1.90 1.90 |
0.4 0.4 0.6 0.6 |
3.8 7.02 9.07 11.25 14.04 14.04 22.41 36.00 |
2.8 4.3 5.28 6.49 7.90 7.90 11.78 19.30 |
14 000 15 000 12 000 12 000 11 000 9 000 |
24 000 22 000 17 000 18 000 15 000 15 000 14 000 11 000 |
0.021 0.045 0.060 0.080 0.129 0.153 0.232 0.530 |
61805 61905 16005 6005 6205 62205 6305 6405 |
• • • • |
• • • |
• • • |
• • • • |
• • • |
• • |
| 30 | 42 47 55 55 62 62 62 90 |
7 9 9 13 16 20 20 23 |
0.3 0.3 0.3 1.0 1.0 1.0 1.0 1.5 |
52.60 59.61 68.81 86.79 |
2.06 3.28 3.28 3.88 |
1.35 1.90 1.90 2.70 |
0.4 0.6 0.6 0.6 |
4.15 7.28 11.20 13.24 19.49 19.46 28.70 48.30 |
3.35 |
12 000 12 000 10 000 7 500 9 000 8 500 |
19 000 19 000 15 000 15 000 13 000 11 000 10 000 |
0.025 |
61806 61906 16006 6006 6206 62206 6306 6406 |
• • • |
• • • |
• • • • |
• • • • |
• • • |
• |
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
MASS ~ |
BASIC DESIGNATION |
MODIFICATION |
||||||||||||||
| d | D | B | rs (min) |
D1 | a ~ |
b | ro
max |
dynamic c |
static co |
grease* | oil | Z | ZZ | RS | 2RS | N | ZN | ||
| mm | kN | min-1 | kg | ||||||||||||||||
| 35 | 62 62 72 80 100 |
9 14 17 21 25 |
0.3 1.0 1.1 1.5 1.5 |
59.61 68.81 76.81 96.80 |
2.06 3.28 3.28 3.88 |
1.35 1.90 1.90 2.70 |
0.6 0.6 0.6 0.6 |
12.20 15.90 25.70 33.60 54.60 |
8.80 10.30 15.30 21.00 30.60 |
10000 10000 9000 8500 7000 |
13000 13000 11000 10000 8500 |
0.110 0.155 0.288 0.457 0.952 |
16007 6007 6207 6307 6407 |
• • • • |
• • • • |
• • • |
• • • |
• • • • |
• • • |
| 40 | 68 68 80 90 110 |
9 15 18 23 27 |
0.3 1.0 1.1 1.5 2.0 |
64.82 76.81 86.79 106.81 |
2.49 3.28 3.28 3.88 |
1.90 1.90 2.70 2.70 |
0.6 0.6 0.6 0.6 |
13.2 16.8 29.1 40.7 64.1 |
10.2 11.5 17.9 24.0 34.6 |
9500 9500 8500 7500 6700 |
12000 12000 10000 9000 8000 |
0.125 0.192 0.366 0.633 1.230 |
16008 6008 6208 6308 6408 |
• • • • |
• • • |
• • • |
• • • |
• • • |
• • • |
| 45 | 75 75 85 100 120 |
10 16 19 25 29 |
0.6 1.0 1.1 1.5 2.0 |
71.83 81.81 96.80 115.21 |
2.49 3.28 3.28 4.06 |
1.90 1.90 2.70 3.10 |
0.6 0.6 0.6 0.6 |
15.6 21.2 32.7 53.0 76.9 |
12.2 15.2 20.5 32.1 45.0 |
9000 9000 7500 6700 6000 |
11000 11000 9000 8000 7000 |
0.170 0.250 0.407 0.833 1.530 |
16009 6009 6209 6309 6409 |
• • • |
• • • |
• • • |
• • • |
• • • • |
• • • |
| 50 | 72 80 80 90 110 130 |
12 10 16 20 27 31 |
0.6 0.6 1.1 1.1 2.0 2.1 |
76.81 86.79 106.81 125.22 |
2.49 3.28 3.28 4.06 |
1.90 1.90 2.70 3.10 |
0.6 0.6 0.6 0.6 |
14.6 16.2 21.8 35.1 61.8 91.6 |
11.8 13.2 16.6 23.2 37.9 54.3 |
8500 8500 7000 6300 5300 |
12000 10000 10000 8500 7500 6300 |
0.14 0.180 0.261 0.463 1.070 1.880 |
61910 16010 6010 6210 6310 6410 |
• • • • |
• • • |
• • • |
• • • |
• • • • |
• • • |
| 55 | 90 90 100 120 140 |
11 18 21 29 33 |
0.6 1.1 1.5 2.0 2.1 |
86.79 96.80 115.21 135.23 |
2.87 3.28 4.06 4.90 |
2.70 2.70 3.10 3.10 |
0.6 0.6 0.6 0.6 |
16.4 28.3 43.4 71.5 100.0 |
14.2 21.3 29.2 44.6 62.0 |
7500 7500 6300 5600 5000 |
9000 9000 7500 6700 6000 |
0.260 0.385 0.607 1.370 2.300 |
16011 6011 6211 6311 6411 |
• • • |
• • • |
• • |
• • |
• • • • |
• • |
| 60 | 95 95 110 130 150 |
11 18 22 31 35 |
0.6 1.1 1.5 2.1 2.1 |
91.82 106.81 125.22 145.25 |
2.87 3.28 4.06 4.90 |
2.70 2.70 3.10 3.10 |
0.6 0.6 0.6 0.6 |
20.0 29.4 46.1 81.8 109.0 |
17.6 23.2 33.1 51.8 70.0 |
6700 6700 6000 5000 4800 |
8000 8000 7000 6000 5600 |
0.280 0.415 0.783 1.790 2.770 |
16012 6012 6212 6312 6412 |
• • • |
• • • |
• • |
• • |
• • • • |
• • • |
| 65 | 100 100 120 140 160 |
11 18 23 33 37 |
0.6 1.1 1.5 2.1 2.1 |
96.80 115.21 135.23 155.22 |
2.87 4.06 4.90 4.90 |
2.70 2.70 3.10 3.10 |
0.6 0.6 0.6 0.6 |
21.2 30.5 57.2 93.0 118.0 |
19.6 25.2 40.0 56.0 78.6 |
6300 5300 4800 4500 |
800 7500 6300 5600 5300 |
0.30 0.435 0.99 2.08 3.80 |
16013 6013 6213 6313 6413 |
• • • |
• • • |
• • |
• • |
• • • • |
• • • |
| 70 | 110 125 150 180 |
20 24 35 42 |
1.1 1.5 2.1 3.0 |
106.81 120.22 145.24 173.66 |
2.87 4.06 4.90 5.69 |
3.10 3.10 3.10 3.50 |
0.6 0.6 0.6 0.6 |
38.0 62.2 104.0 143.0 |
30.9 44.0 63.0 104.0 |
6000 5000 4500 3800 |
7000 6000 5300 4500 |
0.60 1.07 2.52 4.83 |
6014 6214 6314 6414 |
• • • |
• • • |
• • • |
• • • |
• • • • |
• • • |
| 75 | 115 115 130 160 190 |
13 20 25 37 45 |
0.6 1.1 1.5 2.1 3.0 |
111.81 125.22 155.22 183.64 |
2.87 4.06 4.90 5.69 |
3.10 3.10 3.10 3.50 |
0.6 0.6 0.6 0.6 |
28.5 |
27.0 33.6 49.3 77.0 114.0 |
5600 4800 4300 3600 |
6700 6700 5600 5000 4300 |
0.46 0.63 1.18 3.00 6.80 |
16015 6015 6215 6315 6415 |
• • |
• • |
• |
• |
• • • • |
|
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
MASS ~ |
BASIC DESIGNATION |
MODIFICATION |
||||||||||||||
| d | D | B | rs (min) |
D1 | a ~ |
b | ro
max |
dynamic c |
static co |
grease* | oil | Z | ZZ | RS | 2RS | N | ZN | ||
| mm | kN | min-1 | kg | ||||||||||||||||
| 80 | 125 140 170 200 |
22 26 39 48 |
1.1 2.0 2.1 3.0 |
120.22 135.23 163.65 193.65 |
2.87 4.90 5.69 5.69 |
3.10 3.10 3.50 3.50 |
0.6 0.6 0.6 0.6 |
47.6 72.7 124.0 163.0 |
39.7 53.0 80.0 125.0 |
5300 4500 3800 2500 |
6300 5300 4500 3200 |
0.85 1.40 3.60 8.00 |
6016 6216 6316 6416 |
• |
• |
• • |
• • |
• • • • |
|
| 85 | 125 130 150 180 |
18 22 28 41 |
1.1 1.1 2.0 3.0 |
125.22 145.24 173.66 |
2.87 4.90 5.69 |
3.10 3.10 3.50 |
0.6 0.6 0.6 |
32 49.5 77.0 133 |
29 43 59 90 |
5300 5000 4300 3600 |
6300 6000 5000 43000 |
0.55 0.89 1.79 4.23 |
61917 6017 6217 6317 |
• • • |
|||||
| 90 | 140 140 160 190 |
16 24 30 43 |
1.0 1.5 2.0 3.0 |
135.23 155.22 183.64 |
3.71 4.90 5.69 |
3.10 3.10 3.50 |
0.6 0.6 0.6 |
41.5 58.2 102.4 143 |
39 46.6 75.9 98 |
4800 3800 3400 |
5300 5600 4500 4000 |
0.86 1.16 2.15 4.90 |
16018 6018 6218 6318 |
• • • |
|||||
| 95 | 130 145 170 200 |
18 24 32 45 |
1.0 1.5 2.1 3.0 |
140.23 163.65 193.65 |
3.71 5.69 5.69 |
3.10 3.50 3.50 |
0.6 0.6 0.6 |
33.8 60.5 108.7 153 |
33.5 53.7 81.7 110 |
4500 3600 3200 |
6300 5300 4300 3800 |
0.61 1.21 2.62 5.62 |
61919 6019 6219 6319 |
• |
• |
• • • |
|||
| 100 | 150 180 215 |
24 34 47 |
1.5 2.1 3.0 |
145.24 173.66 |
3.71 5.69 |
3.10 3.50 |
0.6 0.6 |
60.1 122.1 175 |
54.2 92.7 131 |
4300 3400 3000 |
5000 4000 3600 |
1.25 3.14 7.00 |
6020 6220 6320 |
• • |
|||||
| 105 | 130 160 190 225 |
13 26 36 49 |
1.1 2.0 2.1 3.0 |
155.22 183.64 |
3.71 5.69 |
3.10 3.50 |
0.6 0.6 |
16.3 72.5 133 173 |
19 65.5 104.5 146 |
4000 3200 2800 |
6300 4800 3800 3400 |
0.32 1.54 3.70 8.05 |
61821 6021 6221 6321 |
• • |
|||||
| 110 | 140 170 200 240 |
16 28 38 50 |
1.0 2.0 2.1 3.0 |
163.65 193.65 |
3.71 5.69 |
3.50 3.50 |
0.6 0.6 |
28.1 82 144.1 207 |
26 72.8 117 167 |
3800 3000 2600 |
5600 4500 3600 3200 |
1.96 4.36 9.54 |
61822 6022 6222 6300 |
• |
• |
• • |
|||
| 120 | 165 180 180 215 260 |
22 19 28 40 55 |
1.1 3.0 |
173.66 |
3.71 |
3.50 |
0.6 |
55.3 63.7 84 153 217 |
57 64 61 112 180 |
3400 2800 2400 |
5000 4800 4000 3400 3000 |
1.2 1.6 1.42 5.15 14.60 |
61924 16024 6024 6224 6324 |
• |
|||||
| 130 | 200 200 230 280 |
22 33 40 58 |
1.1 2.0 3.0 4.0 |
193.65 |
5.69 |
3.50 |
0.6 |
78 |
81.5 78 125 193 |
3200 2600 2200 |
3800 3800 3200 2800 |
2.42 3.70 5.82 18.20 |
16026 6026 6226 6326 |
• |
|||||
| 140 | 210 250 300 |
33 42 62 |
2.0 3.0 4.0 |
110 177 255 |
83 137 224 |
3000 2400 2000 |
3600 3000 2600 |
3.90 7.47 21.80 |
6028 6228 6328 |
• | • | ||||||||
| 150 | 225 270 320 |
35 45 65 |
2.1 3.0 4.0 |
124 190 291 |
98 149 255 |
2600 2000 1900 |
3200 2600 2400 |
4.80 10.10 26.20 |
6030 6230 6330 |
||||||||||
| 160 | 200 240 290 |
20 38 48 |
1.1 2.1 3.0 |
52 138 203 |
62 105 164 |
2400 1900 |
3600 3000 2400 |
1.19 5.89 14.30 |
61832 6032 6232 |
||||||||||
DIMENSIONS |
BASIC LOAD RATING |
LIMITING SPEEDS |
MASS ~ |
BASIC DESIGNATION |
MODIFICATION |
||||||||||||||
| d | D | B | rs (min) |
D1 | a ~ |
b | ro
max |
dynamic c |
static co |
grease* | oil | Z | ZZ | RS | 2RS | N | ZN | ||
| mm | kN | min-1 | kg | ||||||||||||||||
| 170 | 215 260 310 |
22 42 52 |
1.1 2.1 4.0 |
62 168 228 |
73.5 133 196 |
2200 1900 |
3400 2800 2400 |
1.56 7.92 17.50 |
61834 6034 6234 |
||||||||||
| 180 | 280 320 |
46 52 |
2.1 4.0 |
189 256 |
156 230 |
2000 1800 |
2600 2200 |
10.30 18.30 |
6036 6236 |
||||||||||
| 190 | 290 290 340 |
31 46 55 |
2.0 2.1 4.0 |
150 196 269 |
166 167 248 |
2000 1800 |
2600 2600 2000 |
7.1 10.80 23.00 |
16038 6038 6238 |
||||||||||
| 200 | 250 310 360 |
24 51 58 |
1.5 2.1 4.0 |
68 219 280 |
85 190 267 |
1900 1700 |
3000 2400 2000 |
2.8 13.90 28.20 |
61840 6040 6240 |
||||||||||
| 220 | 270 | 24 | 1.5 | 73.5 | 96.5 | 2800 | 2.88 | 61844 | |||||||||||
| 240 | 300 | 28 | 2.0 | 96.4 | 126.1 | 2400 | 4.8 | 61848 | |||||||||||
| 280 | 350 | 33 | 2.0 | 142.7 | 182.9 | 1900 | 7.63 | 61856 | |||||||||||
| 300 | 308 | 38 | 2.1 | 150 | 196 | 1800 | 10.7 | 61860 | |||||||||||
| 320 | 400 | 38 | 2.1 | 153 | 212 | 1700 | 11.3 | 61864 | |||||||||||
| 340 | 420 | 38 | 2.1 | 156 | 220 | 166 | 11.9 | 61968 | |||||||||||
| 380 | 480 | 46 | 2.0 | 237.5 | 351.5 | 1500 | 20.7 | 61876 | |||||||||||
| 480 | 600 | 56 | 3.0 | 300 | 500 | 1100 | 38 | 61896 | |||||||||||
| 560 | 680 | 56 | 3.0 | 310 | 570 | 950 | 43.5 | 618/560 | |||||||||||
| 600 | 730 | 60 | 3.0 | 355 | 670 | 900 | 50.5 | 618/600 | |||||||||||
Deep Groove Ball Bearings Reviewed by Abhishek Kaushik Deep Groove Ball Bearings - Provided by DCDC are the best quality products in the market. Rating: 4.8
